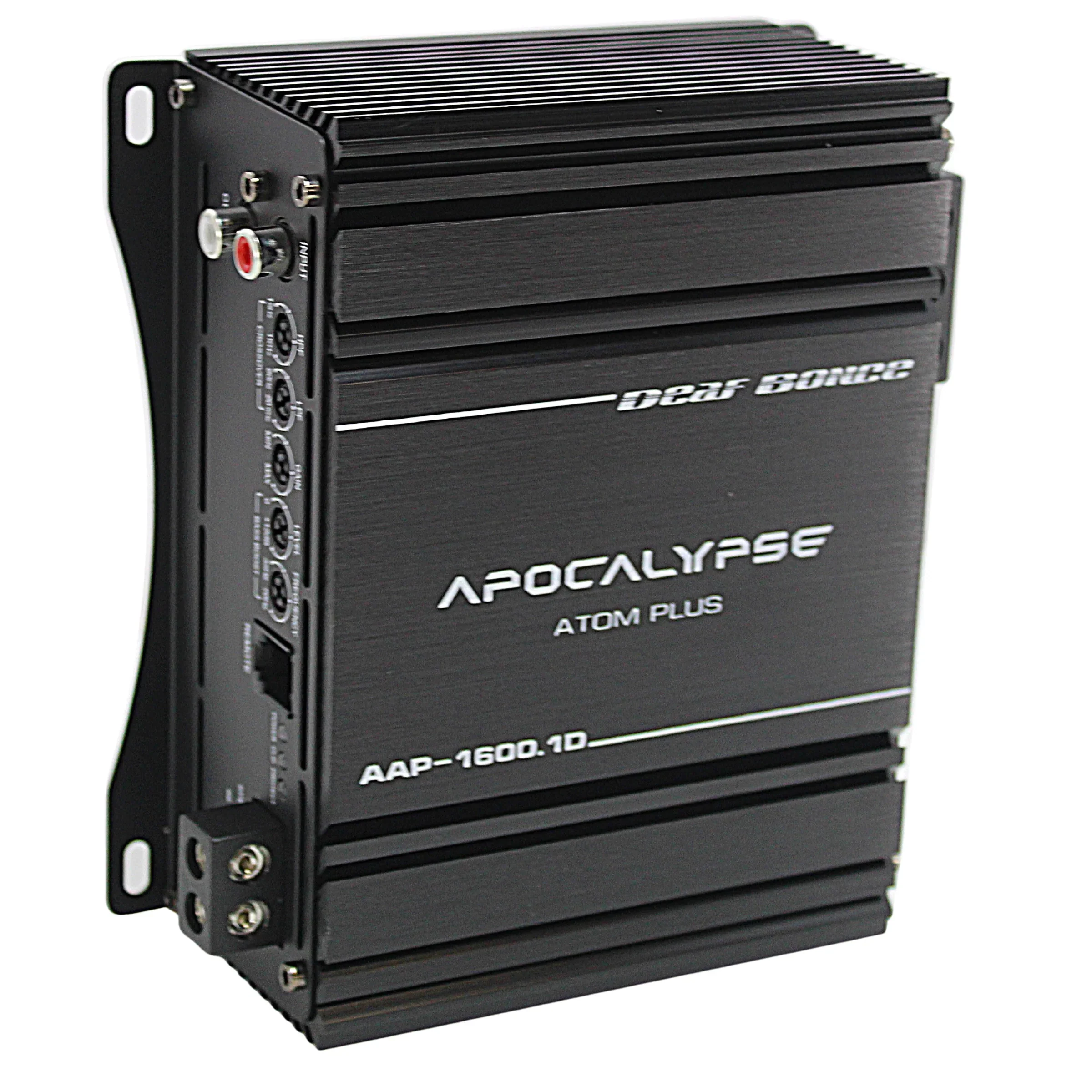

Deaf Bonce Atom Plus AAP-1600.1D 1600W RMS Class D Monoblock Amplifier

SPECIFICATIONS:

Total Watts (Peak): 1600 Watts

RMS Power @ 4 OHM: 650 Watts x 1

RMS Power @ 2 OHM: 1050 Watts x 1

RMS Power @ 1 OHM(12V): 1430 Watts x 1

RMS Power @ 1 OHM(14.4V): 1600 Watts x 1



AUDIO SPECIFICATIONS:

Frequency Response: 15Hz ~ 20KHz

Signal To Noise Ratio: 100 dB

Damping Factor: >210

Total Harmonic Distortion (THD): 1%

Low Pass Filter: 80Hz ~ 20KHz

High Pass Filter: 15Hz ~ 1000Hz

Crossover (dB/Oct): 12

Bass Level Adjustment: 0 ~ 12dB

Bass Frequency Adjustment: 35Hz ~ 70Hz

Input Sensitvity: 0.2 ~ 6V



FEATURES:

Amplifier Class: Digital (D)

Amplifier Type: Monoblock

Number Of Channels: 1

Minimum Impedance: 1 Ohm

Led Indicator: Power / Clip

Input Terminal: 4AWG / 21.2mm

Output Terminal: 8AWG / 8.37mm

Working Voltage: 9 ~ 15V

Body Color: Black



DIMENSIONS:

Overall Length: 5.7 (145mm)

Overall Width: 6.3 (160mm)

Overall Height: 2.5 (63.5mm)

Single Unit Weight: 2.91Lbs
