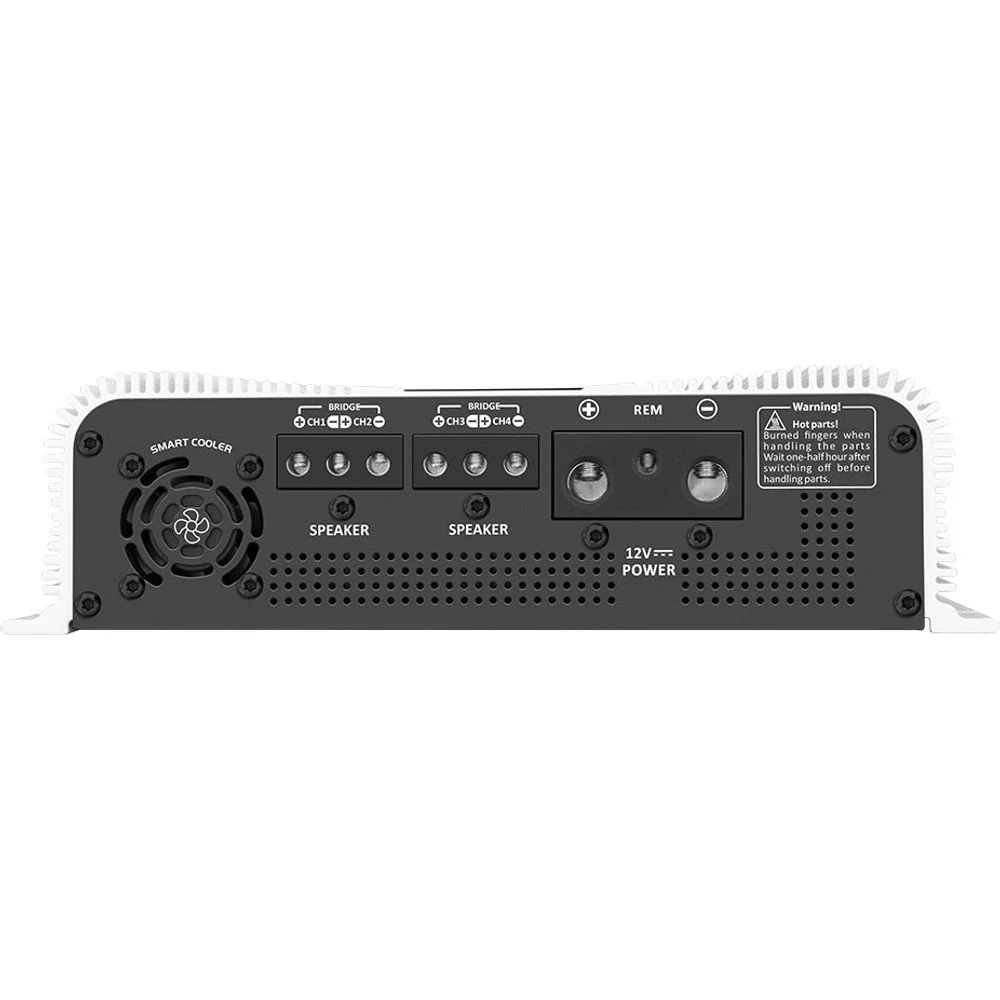

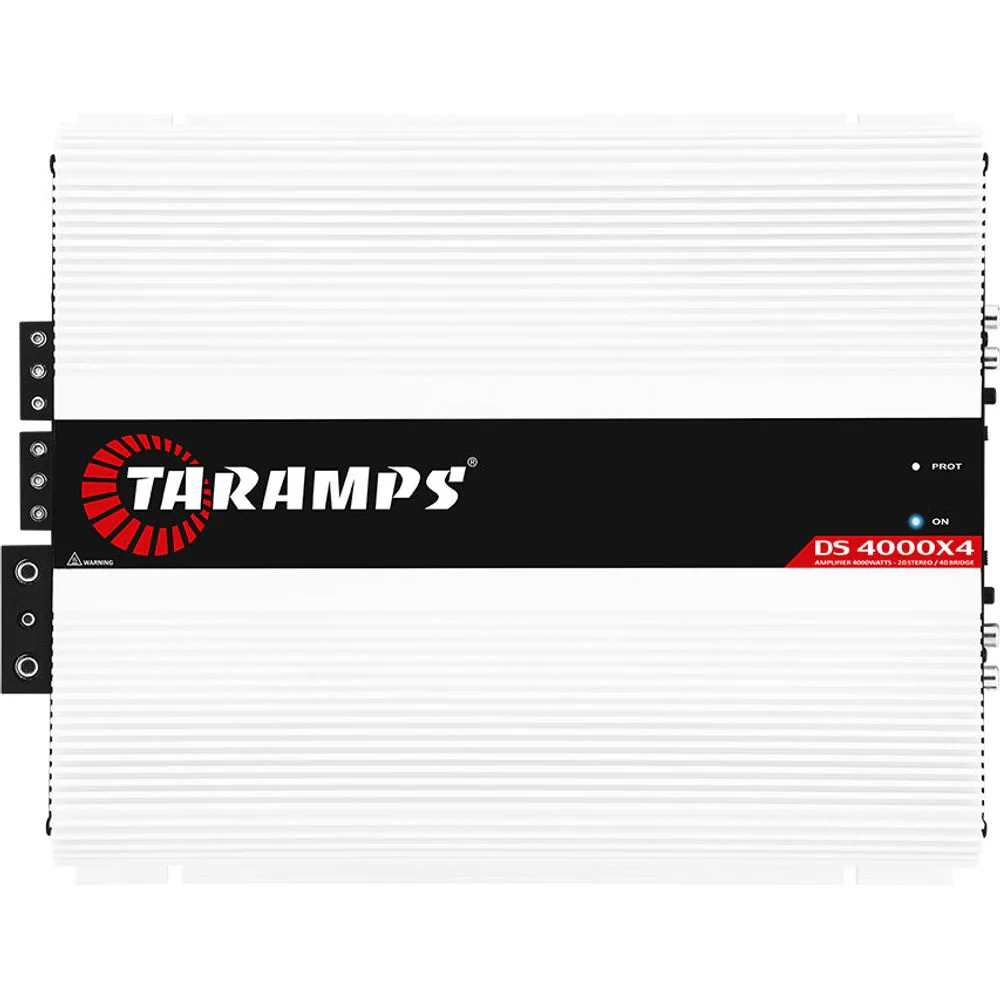

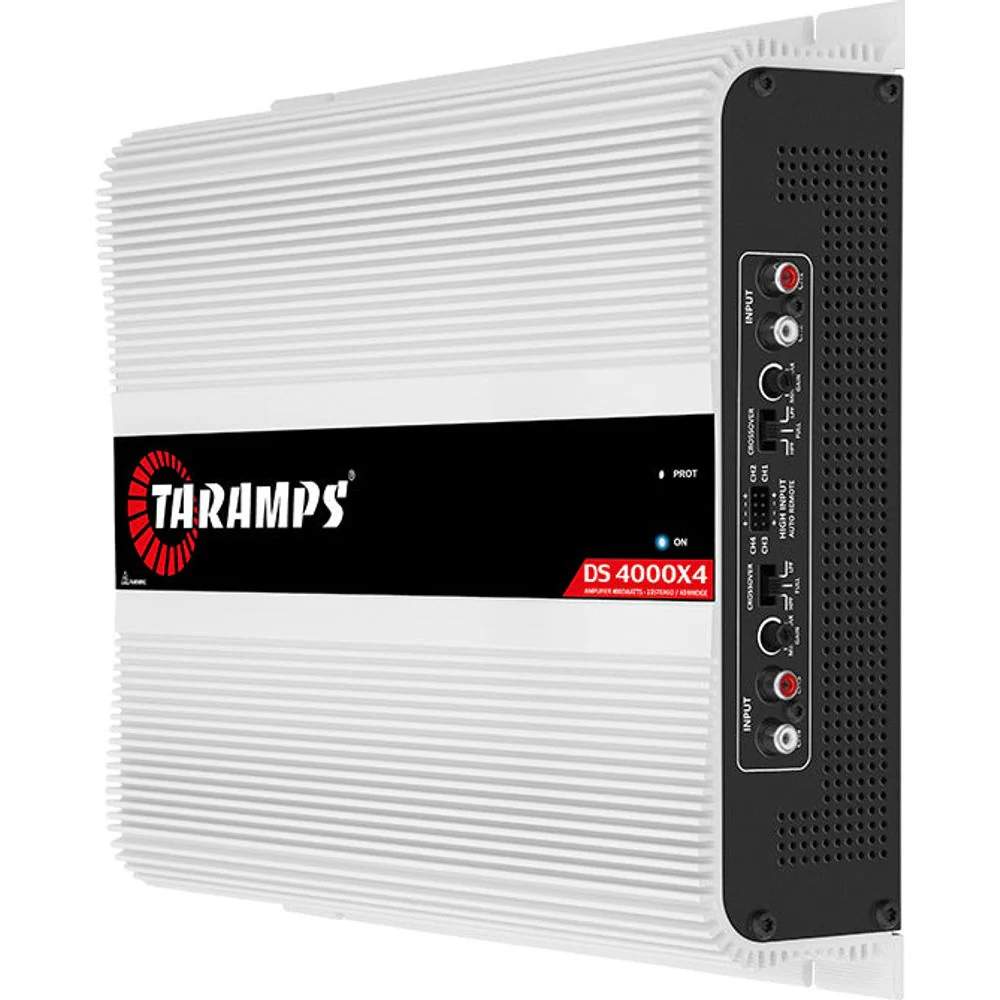

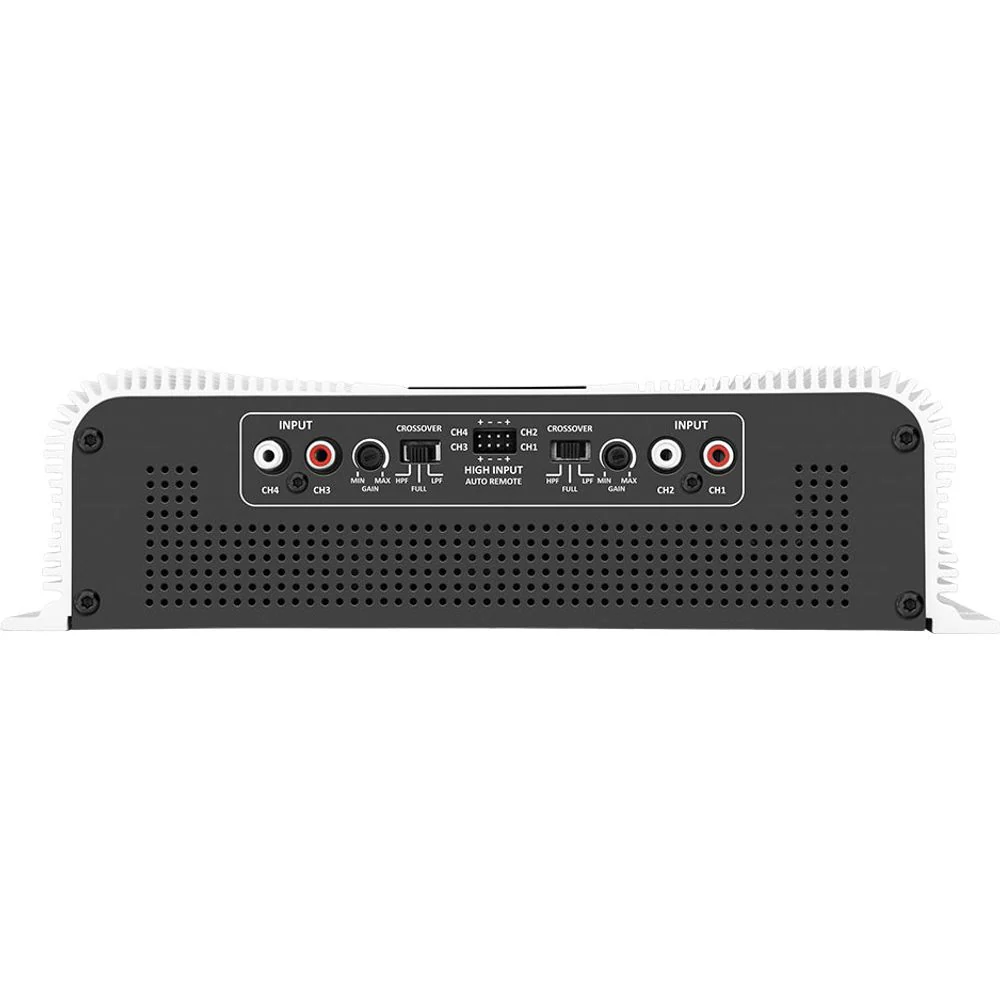

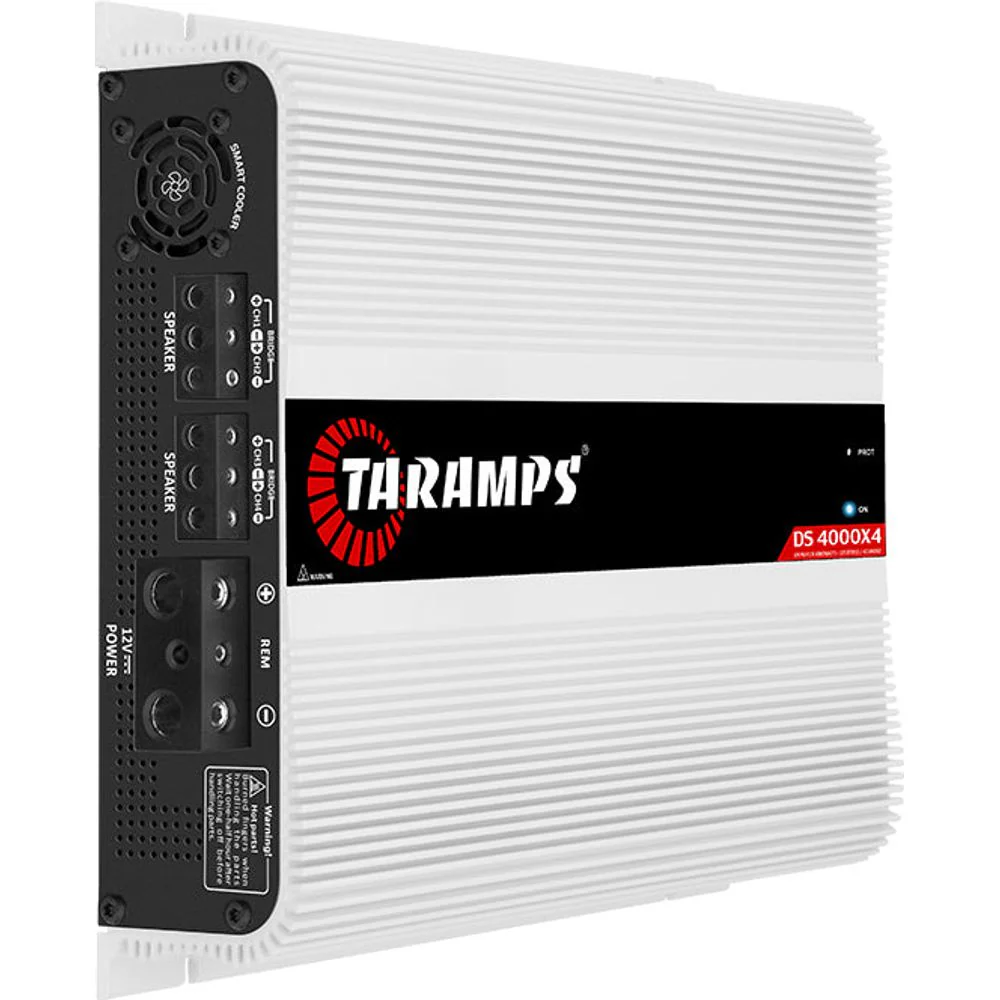

Taramps DS4000X4 | 4000W RMS 4-Channel Amplifier 2-Ohm
TECHNICAL INFORMATION
| OPERATION CLASS | D |
|---|---|
| NUMBER OF CHANNELS | 04 |
| MAXIMUM POWER | @ 14,4 VDC - 1 Ohm: 4000W RMS (4 x 1000W RMS) @ 14,4 VDC - 4 Ohms: 2500W RMS (4 x 625W RMS) 2 Bridged Channels 4 OHMS: (2 x 2000WRMS) |
| INPUT SENSITIVITY | (Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE) |
| SIGNAL TO NOISE RATIO | >86dB |
| FREQUENCY RESPONSE | 8Hz~20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 90Hz (-12dB/8ª) Fixed |
| CROSSOVER LOW PASS (LPF) | 90Hz (-12dB/8ª) Fixed |
| PROTECTION SYSTEM | Output Short Circuit |
| MINIMUM SUPPLY VOLTAGE | 9VDC |
| MAXIMUM SUPPLY VOLTAGE | 17VDC |
| CONSUMPTION AT REST | 2.8A |
| MAXIMUM MUSIC CONSUMPTION | 160A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 320A |
| DIMENSIONS (WXHXD) | 10.55" x 2.83" x 13.11" (268 x 72 x 333mm) |
| WEIGHT | 11.15lb (5,06Kg) |
| EAN | 7898556849197 |
$115.20
Original: $384.00
-70%Taramps DS4000X4 | 4000W RMS 4-Channel Amplifier 2-Ohm—
$384.00
$115.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TECHNICAL INFORMATION
| OPERATION CLASS | D |
|---|---|
| NUMBER OF CHANNELS | 04 |
| MAXIMUM POWER | @ 14,4 VDC - 1 Ohm: 4000W RMS (4 x 1000W RMS) @ 14,4 VDC - 4 Ohms: 2500W RMS (4 x 625W RMS) 2 Bridged Channels 4 OHMS: (2 x 2000WRMS) |
| INPUT SENSITIVITY | (Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE) |
| SIGNAL TO NOISE RATIO | >86dB |
| FREQUENCY RESPONSE | 8Hz~20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 90Hz (-12dB/8ª) Fixed |
| CROSSOVER LOW PASS (LPF) | 90Hz (-12dB/8ª) Fixed |
| PROTECTION SYSTEM | Output Short Circuit |
| MINIMUM SUPPLY VOLTAGE | 9VDC |
| MAXIMUM SUPPLY VOLTAGE | 17VDC |
| CONSUMPTION AT REST | 2.8A |
| MAXIMUM MUSIC CONSUMPTION | 160A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 320A |
| DIMENSIONS (WXHXD) | 10.55" x 2.83" x 13.11" (268 x 72 x 333mm) |
| WEIGHT | 11.15lb (5,06Kg) |
| EAN | 7898556849197 |
